The Constellation 30

A faithful reissue of the 2002 Constellation.

Please contact us at: kometamp@gmail.com for further details, ordering / purchasing info.

Photos and specs: https://drive.google.com/drive/folders/1T6v-Yp7NPeQCe__OSBz8i1gxmf5ZtpLo

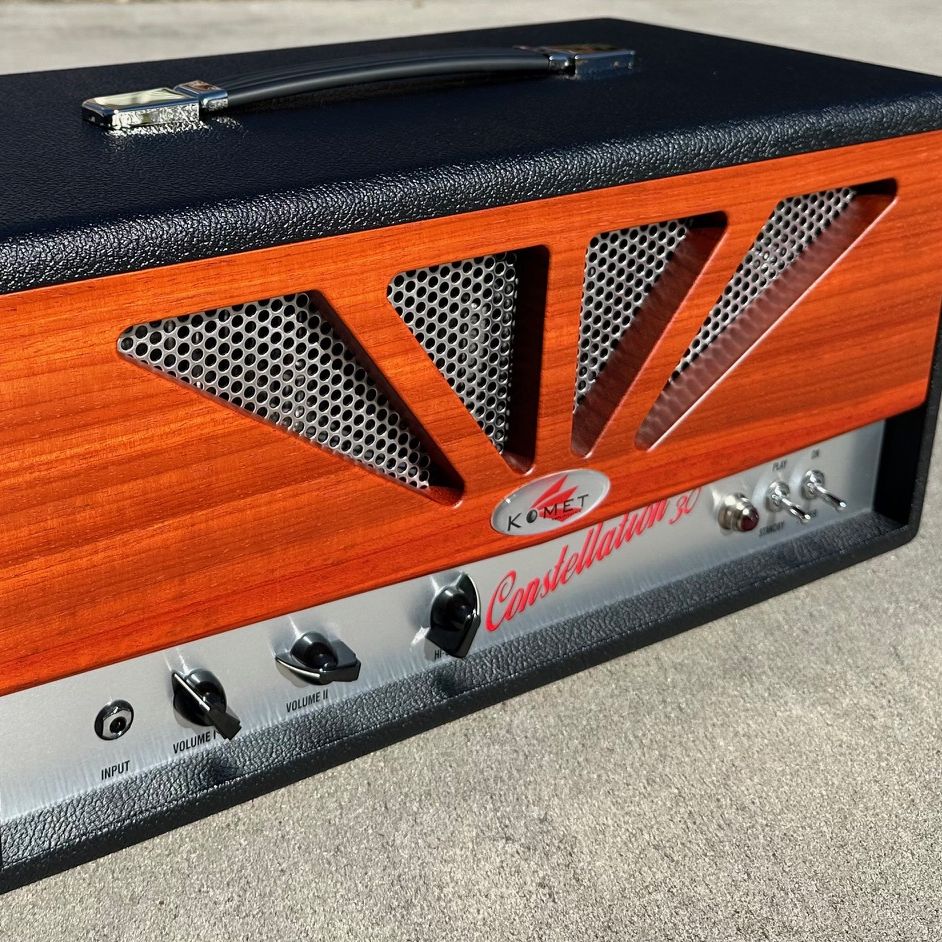

The Classic Connie

In black levant tolex with a Padauk front panel.

Specifications

Tubes & Controls

  • TOTAL POWER

    • 33 Watts RMS

  • POWER Tubes

    • 4 - EL84 / 6BQ5 ( EH Mullard re-issue - dual cathode biased )

  • PREAMP Tubes

    • 2 - 12AX7 (EH Mullard re-issue) and 1 - 6SN7 Tung Sol re-issue

  • CONTROL Panels

    • Volume, Volume, Hi Cut

    • 4 - 8 - 16 OHM selector

    • 2 - parallel wired - Switchcraft speaker jack

Design

  • Custom proprietary designed transformers (made in the U.S.A.)

  • Internally hand wired and meticulously assembled with the finest of components.

  • Silver tinned Teflon® wire - hand wired onto glass epoxy circuit board

  • 1/8th" laser cut & welded aircraft grade aluminum welded chassis (completely

  • manufactured in Louisiana)

  • Completely built in Baton Rouge, Louisiana, U.S.A.

  • Dual cathode resistors for EL84 power section.

Components

  • NKK switches (made in Japan)

  • F&T filter capacitors (made in Germany)

  • Sprague TVA series cathode capacitors (made in the U.S.A.)

  • CDE "orange drop" polyester film coupling capacitors (identical to the 1980s Mallory PVC

  • polyester film capacitor specifications - CDE purchased Mallory)

  • N.O.S. Cornell Dublier silver mica capacitors

  • Wire-wound 5 Watt screen resistors (made in Germany)

  • N.O.S. Xicon carbon film 1 Watt board resistors

Physical

  • Components assembled and mounted with stainless steel screws, bolts, washers and nuts.

  • Head Format: 20 5⁄8" W X 10" D X 9 1⁄2" H - Baltic birch ply (made in the U.S.A.)

  • Silver aluminum control panels (made in the U.S.A.)

  • Levant style tolex (custom order color options available)

  • 120V / 230/240V AC (internally hard wired for one voltage only)

  • Weight: 33 lbs.

  • Note: Custom Tolex colors available (long wait times).

Manuals

Constellation 30 Owner's Manual
What is the Hi Cut Control?
Komet Shipping Weight & Dimensions

Make it
your own.

Komet™ amplifiers are hand-crafted and are available in a wide variety of cosmetics. Each model is available with its own set of customizations such as levant tolex, colored aluminum control panels, and even different Komet logo-plate options — all available from select Komet dealers around the world.

Craft your signature tone and customize your Komet with your own look to boot.
